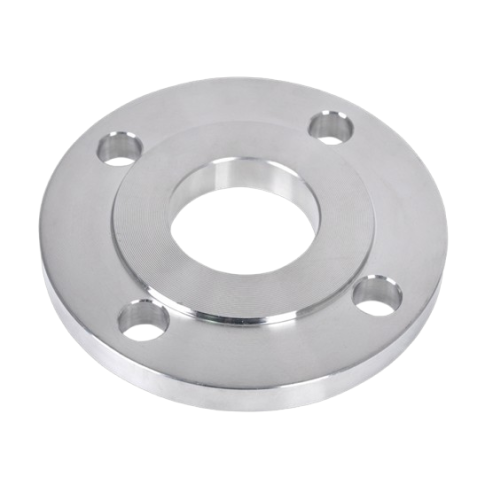

Flat Flange

Name: Flat Flange
SKU: fl-24390003
Price: 9.05 USD
Availability: InStock

Material: 304L

Delivery time: 2 - 3 working days

Pressure: 150 LBS
Dimensions and tolerances acc. to ASME B16.5
CE PED tested with test report EN 10204 3.1

Grouped product items
Flat Flange (A-182/ASME B16.5) 304L 1/2" 21,34 mm S-150 24390003	Qty 300 Pc. in stock Out of stock	US$9.05
Dimension Weight in Kg0.390 Size1/2" 21,34 mm Material304L StandardASME B16.5 Pressure class150 LBS D90.0 mm Ø tube22.2 mm C60.3 mm E34.9 mm b11.6 mm RF height2.0 mm O15.9 mm Bolt Holes4
Flat Flange (A-182/ASME B16.5) 304L 1" 33,4 mm S-150 24390007	Qty 300 Pc. in stock Out of stock	US$17.18
Dimension Weight in Kg0.760 Size1" 33,4 mm Material304L StandardASME B16.5 Pressure class150 LBS D110.0 mm Ø tube34.5 mm C79.4 mm E50.8 mm b14.7 mm RF height2.0 mm O15.9 mm Bolt Holes4
Flat Flange (A-182/ASME B16.5) 304L 1 1/2" 48,3 mm S-150 24390011	Qty 298 Pc. in stock Out of stock	US$27.57
Dimension Weight in Kg1.290 Size1 1/2" 48,3 Material304L StandardASME B16.5 Pressure class150 LBS D125.0 mm Ø tube49.5 mm C98.4 mm E73.0 mm b17.9 mm RF height2.0 mm O15.9 mm Bolt Holes4
Flat Flange (A-182/ASME B16.5) 304L 2" 60,3 mm S-150 24390012	Qty 300 Pc. in stock Out of stock	US$41.53
Dimension Weight in Kg2.000 Size 2" 60,3 mm Material304L StandardASME B16.5 Pressure class150 LBS D150.0 mm Ø tube61.9 mm C120.7 mm E92.1 mm b19.5 mm RF height2.0 mm O19.1 mm Bolt Holes4
Flat Flange (A-182/ASME B16.5) 304L 2 1/2" 73 mm S-150 24390014	Qty 300 Pc. in stock Out of stock	US$63.32
Dimension Weight in Kg3.240 Size2 1/2" 73 mm Material304L StandardASME B16.5 Pressure class150 LBS D180.0 mm Ø tube74.6 mm C139.7 mm E104.8 mm b22.7 mm RF height2.0 mm O19.1 mm Bolt Holes4
